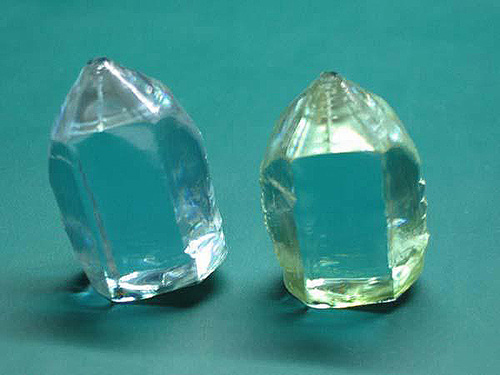

Nd:YVO4

Nd:YVO4 is a diode-pumped laser gain material used particularly at low and medium powers. Coupling its infrared output to a nonlinear crystal enables visible or ultraviolet conversion; pump absorption and emission polarization guide the optical design.

Properties, applications and specifications

Nd doped Yttrium vanadate (Nd:YVO4) is the most efficient laser host crystal for diode pumping among the current commercial laser crystals, especially for low to medium power. This is mainly due to Nd:YVO4' s absorption and emission features which surpass Nd:YAG. Pumped by laser diodes, Nd:YVO4 crystal has been incorporated with NLO crystals (KTP, BBO or BIBO ) to frequency-shift the output from the near infrared to green, blue, or even UV. This incorporation to construct all solid state lasers is an ideal laser tool that can cover the most widespread applications of lasers, including machining, material processing, spectroscopy, wafer inspection, light displays, medical diagnostics, laser printing, and data storage, etc. It has been shown that Nd:YVO4 based diode pumped solid state lasers are rapidly occupying the markets traditionally dominated by water-cooled ion lasers and lamp-pumped lasers, especially when compact design and single-longitudinal-mode outputs are required

Reference advantages of NdYVO4:

Low lasing threshold and high slope efficiency

Large stimulated emission cross-section at lasing wavelength

High absorption over a wide pumping wavelength bandwidth

uniaxial and large birefringence, emits polarized laser

Low dependency on pumping wavelength and easy to get single mode output

Reference specifications of Nd:YVO4 Crystal:
