Yb:YAG is a diode-pumped laser gain material with broad pump absorption and a long upper-state lifetime. Reference designs compare its thermal loading and energy storage with Nd:YAG, with doping and geometry selected for the power regime.
Properties, applications and specifications
Yb:YAG is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd-doped systems. Compared with the commonly used Nd:YAG crsytal , Yb:YAG crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-laser level lifetime, three to four times lower thermal loading per unit pump power. Yb:YAG crystal is expected to replace Nd:YAG crystal for high power diode-pumped lasers and other potential applications.
In the specific case of the host material YAG, Yb3+ has a storage lifetime of 950 µs and a quantum defect of only 8.6%. Yb3+:YAG also has a broad pump line at 940 nm that is 10 times broader than the 808 nm pump line in Nd3+YAG making the system less sensitive to thermal drift of the pump diodes wavelength. These material properties combined with the development of robust long-lifetime InGaAs pump diodes at 940 nm have made this material a superior candidate for diode-pumped high-energy lasers.

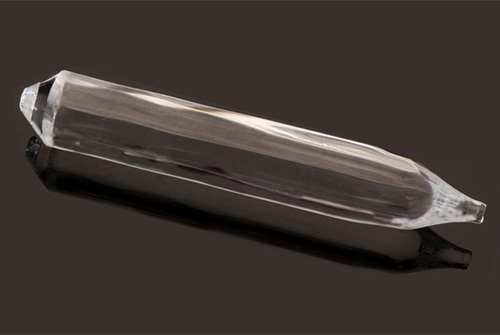

Crystals of Yb 3+ doped YAG are available in a variety of dopant concentrations from 1% - 100% (e.g. Ytterbium aluminum garnet - YbAG).
Advantages:
1. High optical quality 2. Very high slope efficiency 3. Very low fractional heating, less than11% 4. No excited-state absorption or up-conversion 5. Broad absorption bands, about 8nm@940nm 6. High thermal conductivity and large mechanical strength 7. Conveniently pumped by reliable InGaAs diodes at 940nm(or 970nm)
Specifications
|
Dopant concentration
|
Yb:0.3~15at%
|
|
Orientation
|
[100]or[111]within 5°
|
|
Wavefront Distortion
|
≤0.125λ/inch
|
|
Extinction
|
≥28dB
|
|
Rod Sizes
|
Diameter: 2~20mm, length: 5~150mm Upon request of customer
|
|
Dimensional Tolerances
|
Diameter: +0.00/-0.05mm, length:±0.5mm
|
|
Barrel Finish
|
Ground Finish with 400# grit or polished
|
|
Parallelism
|
≤10”
|
|
Perpendicularity
|
≤5’
|
|
Flatness
|
|
|
Surface Quality
|
10-5(MIL-O-13830A)
|
|
Chamfer
|
0.15±0.05mm
|
|
AR Coating Reflectivity
|
≤0.25%(@1030nm)
|
|
Damage Threshold
|
500MW/cm210ns 1Hz at 1064nm
|
Main Properties of Yb:YAG crystal:
|
Chemical Formula
|
Yb3+:Y3AI5O12
|
|
Laser Wavelength
|
1030nm
|
|
Fluorescence Lifetime
|
1.2 ms
|
|
Index of Refraction
|
1.82
|
|
Loss Coefficient
|
0.003 cm-1
|
|
Crystal Structure
|
Cubic
|
|
Lattice Parameters
|
12.01 Å
|
|
Melting Point
|
1970℃
|
|
Moh Hardness
|
8.5
|
|
Density
|
4.56±0.04g/cm3
|
|
Specific Heat (0-20)
|
0.59J/g.cm3
|
|
Thermal Expansion Coefficient
|
[111]Direction:7.8×10-6/℃(0~250℃)
|
|
Thermal Conductivity
|
14W/m/K(@20℃) , 10.5W/m/K(@100℃)
|
Standard Products
|
Part No
|
Diameter(mm)
|
Length(mm)
|
Doping
|
Cut angle
|
Coating
|
|
YbYAG-1510-20
|
15
|
1
|
20%
|
<111>
|
AR/AR1030 nm
|
|
YbYAG-1510-15
|
15
|
1
|
15%
|
<111>
|
AR/AR1030 nm
|
|
YbYAG-1205-20
|
12.7
|
0.5
|
20%
|
<111>
|
AR/AR1030 nm
|
|
YbYAG-1205-15
|
12.7
|
0.5
|
15%
|
<111>
|
AR/AR1030 nm
|
