High-Power High-Reflection Coatings
time :2026-04-18
arcclick:

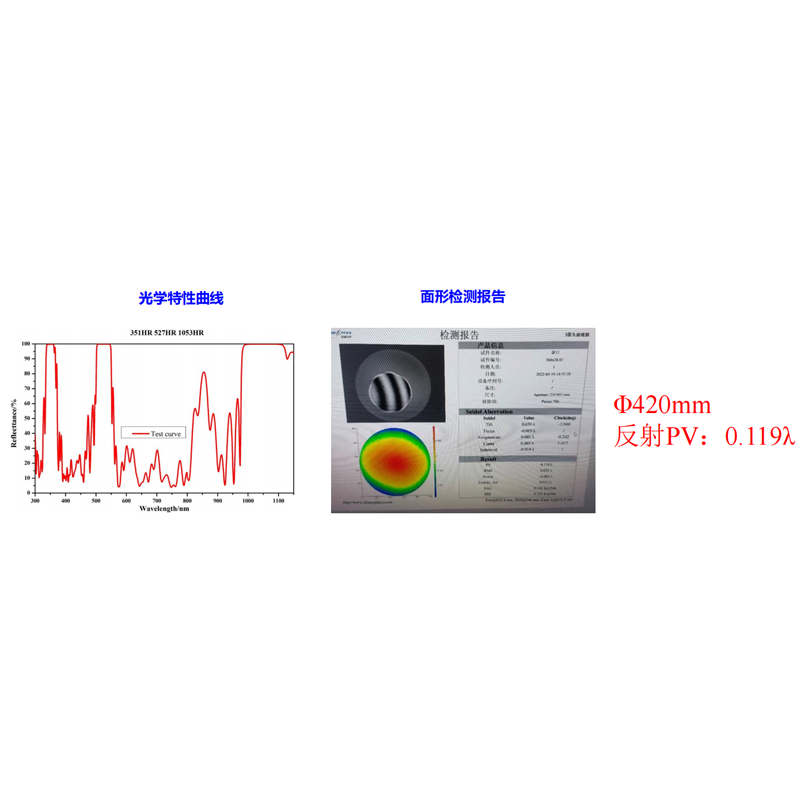

Coating Properties:
Normal incidence;
R > 99.85% @ 351 nm,
R > 99.90% @ 527 nm,
R > 99.90% @ 1053 nm
Laser Induced Damage Threshold (LIDT):
12 J/cm² @ 351 nm, 3 ns
30 J/cm² @ 527 nm, 3 ns
65 J/cm² @ 1053 nm, 3 ns
Suitable Substrates:
K9 glass, fused silica, etc.
Applications:
High-power laser systems, laser weapons, etc
